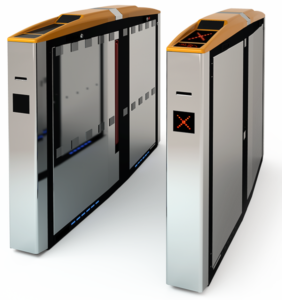

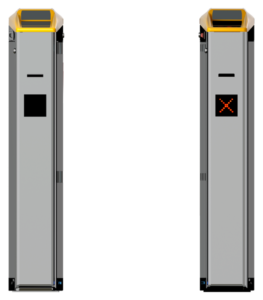

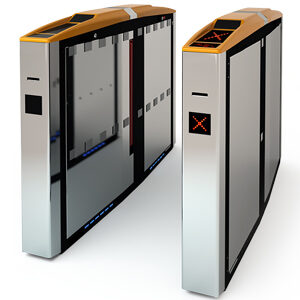

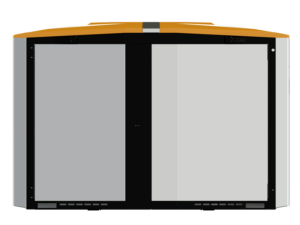

Turnstile Eclipse

Turnstile Eclipse is an intelligent flap turnstile developed in response to the current trends. It is our first retractable flaps turnstile in the line. (price on request)

SKU: Style-1y-1 Categories: ,

Product Description

Eclipse has all the advantages of the luxury turnstiles. The flaps are made of durable plastic and the mechanism of the turnstile is particularly reliable in operation. Smooth and ergonomic design of the turnstile posts, changeable illumination and expressive indication makes this turnstile usage safe and comfortable for passengers. Narrow design of the turnstile posts ensures the largest possible amount of aisles equipped in a limited space. This model is intended for installation as a part of access control systems, as well as automated fare collection systems, especially in the subways.

For passengers’ safety, the turnstile has no sharp edges.
On the turnstile casing, there is a LCD or TFT-screen (up to 5′) installed to display the passage status, passenger prompt messages and the transport card balance.
Advance optical sensors to prevent unauthorized access.
The installation of optional devices is available:

  • the reader of 125 kHz RFID-cards or 13,56 MHz MIFARE®* cards;
  • the barcode ticket reader;
  • the smart-tokens reader;
  • the magnetic stripe ticket reader.

An equipment to play some audio warnings can be installed to prevent unauthorized access attempts.

Design options:Overall DimentionsSpecifications
Casing: polished stainless steel

Flapss: retractable plastic flaps

Execution options: Мaster, Middle, Slave.

Case height: 1145 mm
Case length: 220 mm
Case width: 1685 mm
Passage width: 550 mm
Weight: 140 kg
AC power supply: 220 V ± 10%
Power consumption: 150 W
Capacity: 20 men/min and more
Torque of the flap: 5±1 nm
Working temperatures: 0…+45°С
Dust and water protection rating: IP 32
