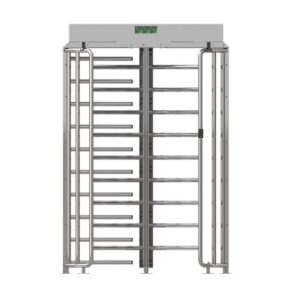

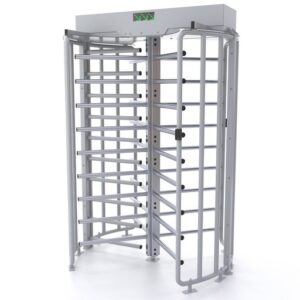

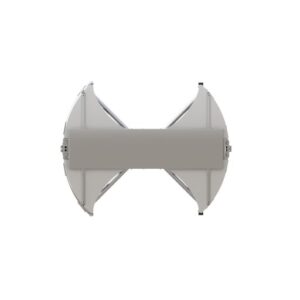

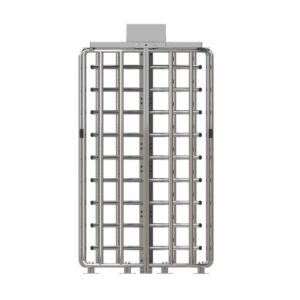

Turnstile Raptor Max X-shaped (90° angle)

The Raptor X Max full-height turnstile is the optimal choice for facilities that require maximum perimeter security.

SKU: Raptor X Max-y Categories: ,

Product Description

Thanks to the new design of the mechanism, the turnstile is reliable in operation, and at the same time is able to perform its functions in any climatic conditions. The blocking system completely excludes unauthorized passage through the turnstile due to constant smart-control of its state, which means that it can be used in places where it is impossible or irrational to organize a guard post. At the same time, “Raptor X Max” is universal in connection, and can be integrated into an existing access control system at the facility, or into any system of your choice.

Functional features:
• The full height turnstile is compatible with most types of access control systems.
• The servo-driven turnstile provides a wide range of possibilities to control the mechanism.
• The locking mechanism mechanism is made using a braking force of more than 1 ton, which ensures absolutely reliable fixation of the mechanism in any position.
• Avaliable materials: polished stainless steel; brushed stainless steel; painted metal.
Design options:Overall dimensions:Specifications:

  • Polished stainless steel
  • Brushed stainless steel

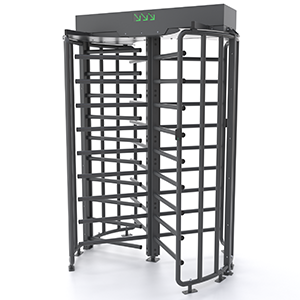

  • Painted black metal


  • Polished stainless steel
  • Brushed stainless steel
  • Painted black metal


  • Electromechanical enhanced
Case height 2208 mm
Case width 1510 mm
Case depth 1194 mm
Passage width 650 mm
Weight 200 kg
Supply voltage 24 V ± 15%
Power consumption (max) 180 W
Capacity 20 persons/min and more
Working temperatures –30…+50°С
Dust and water protection rating IP 54
