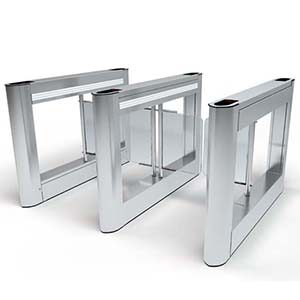

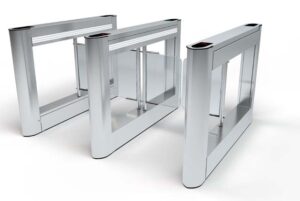

Turnstile PORTA Breeze Master& Slave

Porta Breeze is an improved model in Porta turnstile product line that proved itself to be good. Flaps made of acryl.

Add to quote
SKU: Porta Breeze-1 Categories: ,

Product Description

The turnstile has simpler mechanism, updated controller and extended operating conditions. Stylish design allows to manage access control in enterprises, office buildings, business centers, banks, etc. Up-to-date materials and design improvements ensure reliable operation of the turnstile in any climatic conditions. Turnstile PORTA Breeze Master& Slave has proved its faultless performance under extended temperature range and high humidity conditions.

Peculiarities
  • Turnstile design provides reliable operation in any weather environment.
  • The turnstile can be intuitively controlled by external control panel as well as external controller of the access control system.
  • Inside the turnstile there is place to install readers for contactless cards of popular formats and if needed 1D/2D bar-code scanners.
  • Turnstile controller is equipped with RS485 interface for connection of external access control systems and allows to develop software for the turnstile control using standard control protocols.
  • The turnstile is a new model in Porta turnstile product line that has proved itself good and has simpler mechanism, updated controller and extended operating conditions.
Design options:Overall DimentionsSpecifications
Casing – polished stainless steel

Flapss – flaps made of acryl

Post height: 1000 mm
Post length: 1530 mm
Post width: 155 mm
Passage width: 700 mm
Post weight: 38 kg		DC power supply: 24V±10%
Consuming voltage: min 25W
Capacity: 30 men/min and more
Torque: 20 nm ± 10%
Working temperatures: -20…+45°С
Dust and water protection rating: IP 54
